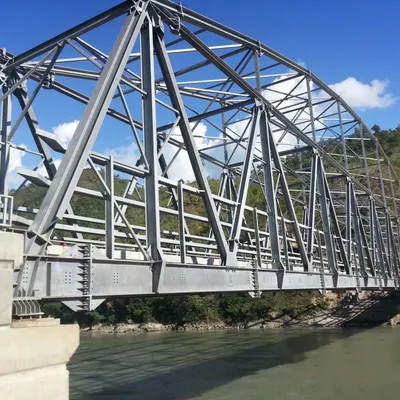

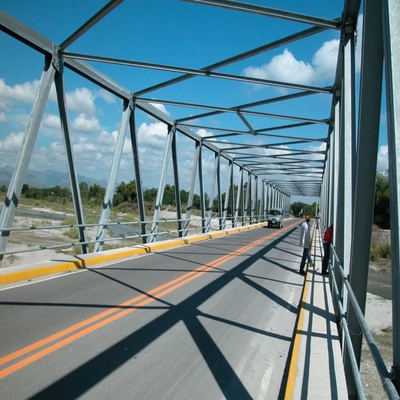

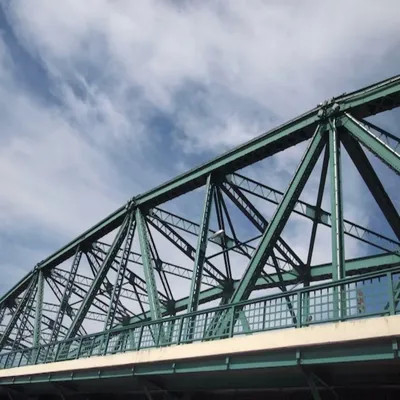

Product Details:
Contact Now
Chat Now
|
Material: | Steel | Specification: | Custom |
---|---|---|---|
Delivery Time: | 15-45 Days | Origin: | Qingdao |
File Formats: | Solid Works, Autocad(Dxf, Dwg), Pdf | Sample Time: | 7 Days If Standard Parts We Have |
Processing: | Cutting,welding,assembly,galvanizing,painting,flaw Detection,transporting | Design: | Do As The Customer's Drawing |
Highlight: | OEM Prefab Steel Girder Bridge,Prefab steel girder bridge design,Highly Load Bearing Steel Bridge Construction |
Material | Steel |
Specification | Custom |
Delivery Time | 15-45 Days |
Origin | Qingdao |
File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
Sample Time | 7 Days If Standard Parts We Have |
Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
Design | Do as the customer's drawing |
NO. | Internal Force | Structure Form |
---|---|---|
200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
Structure | Geometric Characteristics |
---|---|
SS | Chord Area(cm2): 25.48 | Section Properties(cm3): 5437 | Moment of Inertia(cm4): 580174 |
SSR | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
DS | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
DSR1 | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
DSR2 | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
TS | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
TSR2 | Chord Area(cm2): 127.4 | Section Properties(cm3): 27185 | Moment of Inertia(cm4): 2900870 |
TSR3 | Chord Area(cm2): 152.88 | Section Properties(cm3): 32625 | Moment of Inertia(cm4): 3481044 |
QS | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
QSR3 | Chord Area(cm2): 178.36 | Section Properties(cm3): 38059 | Moment of Inertia(cm4): 4061218 |
QSR4 | Chord Area(cm2): 203.84 | Section Properties(cm3): 43500 | Moment of Inertia(cm4): 4641392 |
