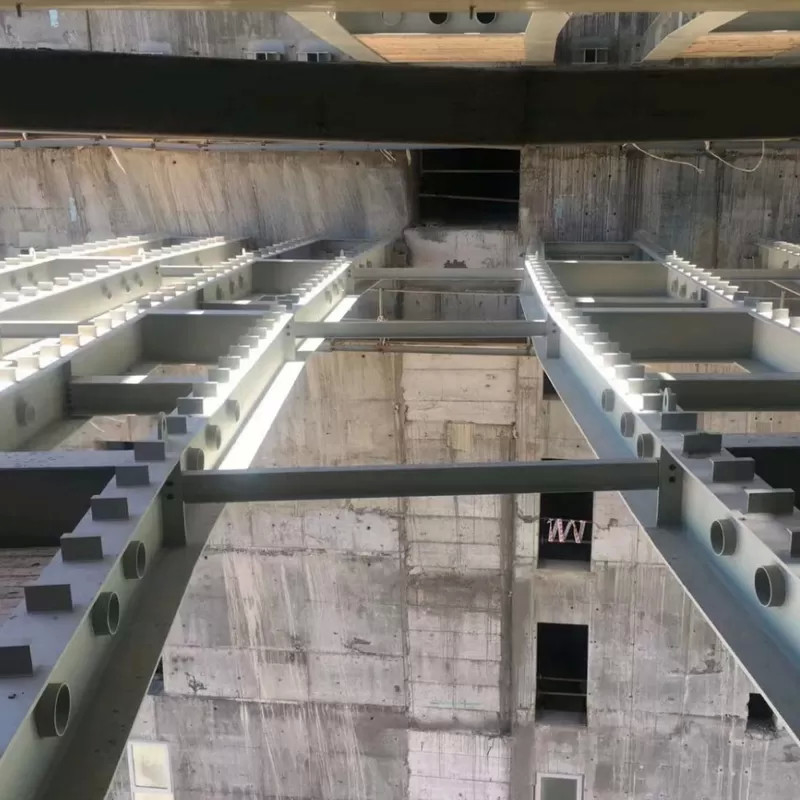

Snow Resistant Prefabricated Steel Structure Bridge H Section Metal Truss Bridge ISO9001
Product Specifications
| Attribute | Value |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Design | Do as the customer's drawing |
Product Description
ISO 9001 Certified H Section Steel Structure Bridges offer superior snow resistance and durability. These load-bearing structures are designed for highways, railways, and pedestrian crossings, constructed with high-strength steel girders, trusses, or arch systems for exceptional structural integrity.
Key advantages include resistance to heavy traffic, seismic activity, and extreme weather conditions. Prefabricated for efficient assembly, these bridges reduce construction time and costs while maintaining environmental sustainability. The design allows for long spans with minimal support, optimizing transportation flow and safety.
With surface treatments including galvanization and anti-corrosion coatings, our steel bridges offer extended service life with minimal maintenance requirements.
Technical Specifications
ZB200 Truss Press Limited Table
| NO. | Internal Force | Structure Form |
| | Not Reinforced Model | Reinforced Model |
| | SS | DS | TS | QS | SSR | DSR | TSR | QSR |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of Geometric Characteristics of Truss Bridge (Half Bridge)
| Structure | Geometric Characteristics |
| Chord Area(cm²) | Section Properties(cm³) | Moment of Inertia(cm⁴) |
| SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | 50.96 | 10875 | 1160348 |
| DSR1 | 76.44 | 16312 | 1740522 |
| DSR2 | 101.92 | 21750 | 2320696 |
| TS | 76.44 | 16312 | 1740522 |
| TSR2 | 127.4 | 27185 | 2900870 |
| TSR3 | 152.88 | 32625 | 3481044 |
| QS | 101.92 | 21750 | 2320696 |
| QSR3 | 178.36 | 38059 | 4061218 |
| QSR4 | 203.84 | 43500 | 4641392 |
Company Profile
We are a leading manufacturer with advanced steel structure housing and sandwich panel production equipment. Our annual production capacity includes:
- 100 million square meters of civil and industrial light steel construction
- 130 million square meters of panels including sandwich panels, fireproof glass wool boards, rock wool boards, and corrugated sandwich panels
Committed to quality and innovation, we operate with a complete scientific management system and have established distribution networks across China and international markets including South America, Europe, Middle Asia, and Africa.
Production Process

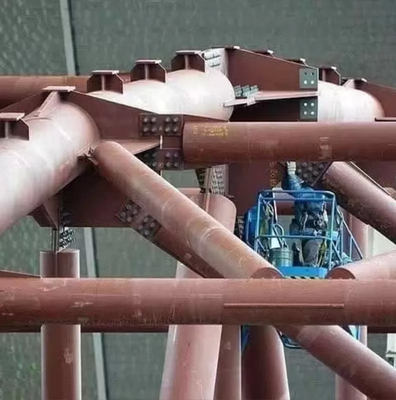

Project Cases
Customer References
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details (by sea or air) and destination port/airport.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us to discuss your requirements.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM services are available. We can work from your design plan or original sample, handling all stages from concept to finished product including design, prototyping, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product specifications, quantity, and delivery requirements
- Payment details
- Shipping information including address, contact details, and preferred shipping method
- Freight forwarder contact information if applicable
- Official purchase order or we can provide proforma invoices
