C Purlin Steel Bridge Structure - Anti-Corrosion Steel Frame Bridge with High Strength
Product Specifications
| Attribute | Value |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Design | Do as the customer's drawing |

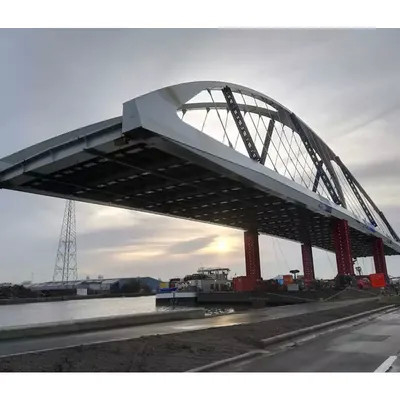

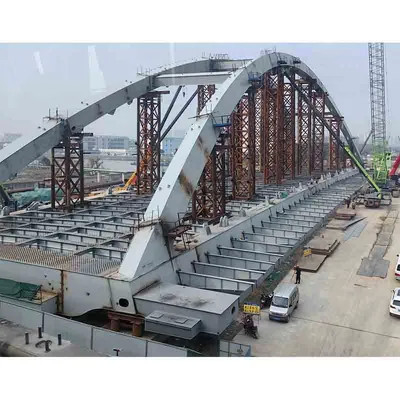

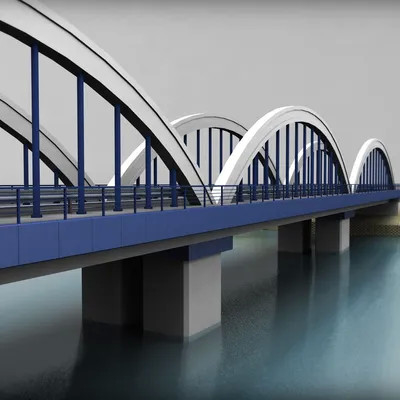

High Strength Steel Structure Bridge
Our steel bridge is a highly durable and load-bearing structure designed for highways, railways, and pedestrian crossings. Constructed using high-strength steel girders, trusses, or arch systems, it ensures superior structural integrity and resistance to heavy traffic, seismic activity, and extreme weather conditions.
Steel bridges are prefabricated for efficient assembly, reducing construction time and costs while maintaining environmental sustainability. Their design allows for long spans with minimal support, optimizing transportation flow and safety. With various surface treatments such as galvanization and anti-corrosion coatings, steel bridges offer a long service life with minimal maintenance requirements.
Technical Specifications
ZB200 truss press limited table
| NO. | Internal Force | Structure Form |
| 200 | Standard truss moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard truss shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High bending truss moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High bending truss shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear force of super high shear truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of geometric characteristics of truss bridge (Half bridge)
| Structure | Geometric Characteristics |
| SS | Chord area(cm2): 25.48 | Section properties(cm3): 5437 | Moment of inertia(cm4): 580174 |
| SSR | Chord area(cm2): 50.96 | Section properties(cm3): 10875 | Moment of inertia(cm4): 1160348 |
| DS | Chord area(cm2): 50.96 | Section properties(cm3): 10875 | Moment of inertia(cm4): 1160348 |
| DSR1 | Chord area(cm2): 76.44 | Section properties(cm3): 16312 | Moment of inertia(cm4): 1740522 |
| DSR2 | Chord area(cm2): 101.92 | Section properties(cm3): 21750 | Moment of inertia(cm4): 2320696 |
| TS | Chord area(cm2): 76.44 | Section properties(cm3): 16312 | Moment of inertia(cm4): 1740522 |
| TSR2 | Chord area(cm2): 127.4 | Section properties(cm3): 27185 | Moment of inertia(cm4): 2900870 |
| TSR3 | Chord area(cm2): 152.88 | Section properties(cm3): 32625 | Moment of inertia(cm4): 3481044 |
| QS | Chord area(cm2): 101.92 | Section properties(cm3): 21750 | Moment of inertia(cm4): 2320696 |
| QSR3 | Chord area(cm2): 178.36 | Section properties(cm3): 38059 | Moment of inertia(cm4): 4061218 |
| QSR4 | Chord area(cm2): 203.84 | Section properties(cm3): 43500 | Moment of inertia(cm4): 4641392 |
