Angle Steel Military Pontoon Bridge High Stability Hot Rolled Prefabricated Steel Bridge
Product Specifications
| Attribute | Value |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Design | Do as the customer's drawing |
Angle-Steel Knee Braces for Enhanced Stability in Customizable Steel Structure Bridge

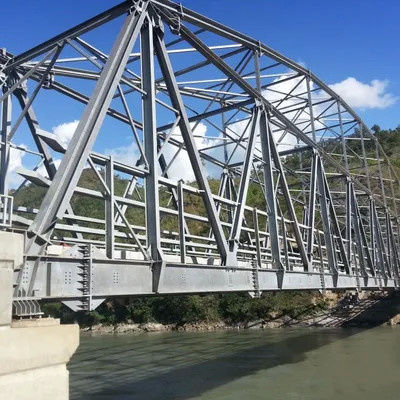

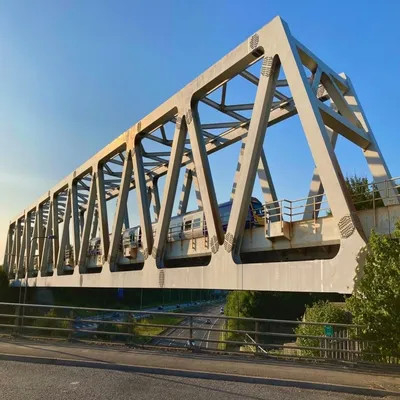

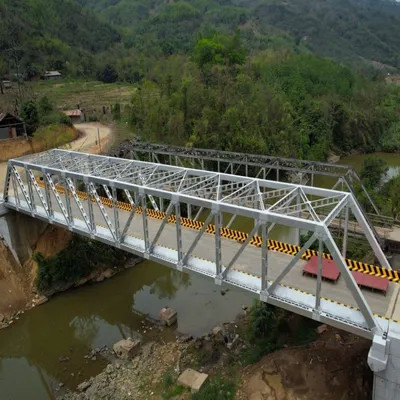

A steel bridge is a highly durable and load-bearing structure designed for highways, railways, and pedestrian crossings. Constructed using high-strength steel girders, trusses, or arch systems, it ensures superior structural integrity and resistance to heavy traffic, seismic activity, and extreme weather conditions. Steel bridges are prefabricated for efficient assembly, reducing construction time and costs while maintaining environmental sustainability. Their design allows for long spans with minimal support, optimizing transportation flow and safety. With various surface treatments such as galvanization and anti-corrosion coatings, steel bridges offer a long service life with minimal maintenance requirements.
ZB200 Truss Press Limited Table
| NO. | Internal Force | Structure Form |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of Geometric Characteristics of Truss Bridge (Half Bridge)
| Structure | Geometric Characteristics |
| SS | Chord Area(cm2): 25.48 | Section Properties(cm3): 5437 | Moment of Inertia(cm4): 580174 |
| SSR | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DS | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DSR1 | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| DSR2 | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| TS | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| TSR2 | Chord Area(cm2): 127.4 | Section Properties(cm3): 27185 | Moment of Inertia(cm4): 2900870 |
| TSR3 | Chord Area(cm2): 152.88 | Section Properties(cm3): 32625 | Moment of Inertia(cm4): 3481044 |
| QS | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| QSR3 | Chord Area(cm2): 178.36 | Section Properties(cm3): 38059 | Moment of Inertia(cm4): 4061218 |
| QSR4 | Chord Area(cm2): 203.84 | Section Properties(cm3): 43500 | Moment of Inertia(cm4): 4641392 |
COMPANY PROFILE
Our company currently has the most advanced professional steel structure housing and sandwich panel production equipment, with annual production capacity of up to 100 million square meters for civil and industrial light steel construction. Our panel production includes sandwich panel, China A grade fireproof glass wool board, rock wool board, corrugated sandwich panel, single color steel tile, and invisible watts, with capacity of 130 million square meters.
Since its inception, we have adhered to the business philosophy of "Implementation of Hege's strategy to create first-class brand", the spirit of "pragmatic, pioneering and innovative", and the service purpose of "being responsible for the products and satisfactory to users". We have established a complete scientific management system and unique business model, with distribution networks and service facilities in more than 10 provinces and cities across China.
In recent years, Hege company has expanded into overseas markets with products successfully exported to South America, Europe, Middle Asia, Africa and other countries and regions, gradually becoming a worldwide famous brand.
PRODUCTIVE PROCESS
CASE
CUSTOMER
CERTIFICATION
FAQ
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific mode of transportation (by sea or air) and which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, please contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available. You can show us your design plan or original sample. We handle everything from concept to finished goods including design, prototype reviewing, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, detailed address, phone number, shipping requirements (courier, air or sea)
- If you have a preferred freight forwarder, please provide their contact information
- Send us an official purchase order by email or we can provide proforma invoices
