Prefabricated Steel Structure Bridge Customized Size Long Span Steel Frame Bridge
Product Specifications
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Design | Do as the customer's drawing |
Product Description

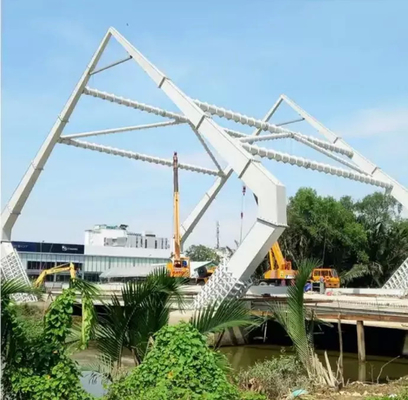

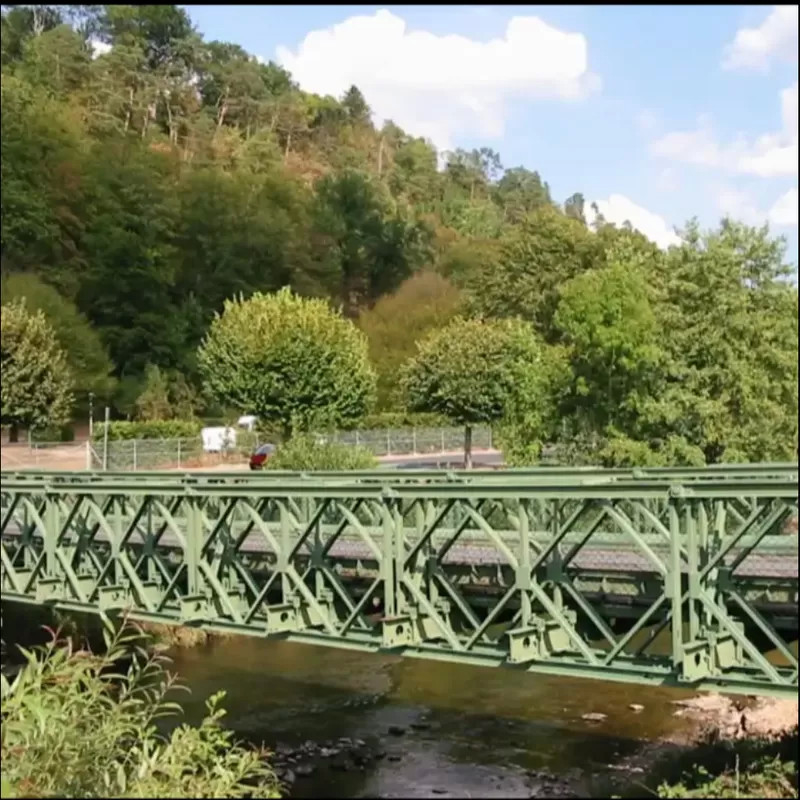

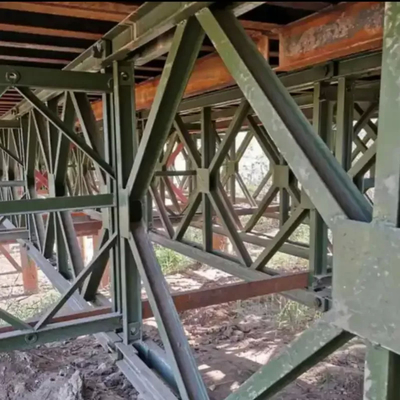

Wanzhida Long Span Prefabricated Steel Structure Bridges offer customized solutions for various applications. These steel bridges are highly durable and load-bearing structures designed for highways, railways, and pedestrian crossings. Constructed using high-strength steel girders, trusses, or arch systems, they ensure superior structural integrity and resistance to heavy traffic, seismic activity, and extreme weather conditions.
Steel bridges are prefabricated for efficient assembly, reducing construction time and costs while maintaining environmental sustainability. Their design allows for long spans with minimal support, optimizing transportation flow and safety. With various surface treatments such as galvanization and anti-corrosion coatings, steel bridges offer a long service life with minimal maintenance requirements.
Technical Specifications
ZB200 Truss Press Limited Table
| NO. | Internal Force | Structure Form |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |

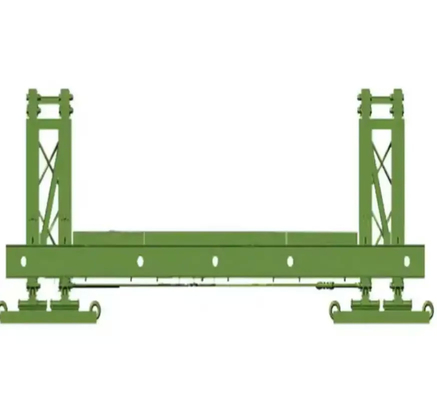

ZB200 Table of Geometric Characteristics of Truss Bridge (Half Bridge)
| Structure | Geometric Characteristics |
| SS | Chord Area(cm2): 25.48 | Section Properties(cm3): 5437 | Moment of Inertia(cm4): 580174 |
| SSR | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DS | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DSR1 | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| DSR2 | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| TS | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| TSR2 | Chord Area(cm2): 127.4 | Section Properties(cm3): 27185 | Moment of Inertia(cm4): 2900870 |
| TSR3 | Chord Area(cm2): 152.88 | Section Properties(cm3): 32625 | Moment of Inertia(cm4): 3481044 |
| QS | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| QSR3 | Chord Area(cm2): 178.36 | Section Properties(cm3): 38059 | Moment of Inertia(cm4): 4061218 |
| QSR4 | Chord Area(cm2): 203.84 | Section Properties(cm3): 43500 | Moment of Inertia(cm4): 4641392 |
Company Profile
Our company currently has the most advanced professional steel structure housing and sandwich panel production equipment, with annual production capacity of up to 100 million square meters for civil and industrial light steel construction. Our panel production includes sandwich panels, China A grade fireproof glass wool boards, rock wool boards, corrugated sandwich panels, single color steel tiles, and invisible watts, totaling 130 million square meters.
Since its inception, we have adhered to the business philosophy of "Implementation of Hege's strategy to create first-class brand", and the spirit of "pragmatic, pioneering and innovative". We maintain the service purpose of "being responsible for the products and satisfactory to users", gradually establishing a complete scientific management system and unique business model.
With distribution networks in more than 10 provinces and cities, we have a strong service team supporting our operations. In recent years, Hege company has expanded into overseas markets, successfully exporting products to South America, Europe, Middle Asia, Africa and other regions, gradually becoming a worldwide famous brand.
Production Process
Project Cases
Our Customers
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific mode of transportation (by sea or air) and destination port or airport.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available. You can provide design plans or original samples. We handle everything from concept to finished goods including design, prototype reviewing, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea)
- If you have a preferred freight forwarder, please provide their contact information
- Please send us an official purchase order by email or we can provide proforma invoices
