HDG Galvanizing Steel Structure Bolt Connecting Bridge Henvy Steel Bridge
Product Specifications
| Attribute | Value |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
Product Description

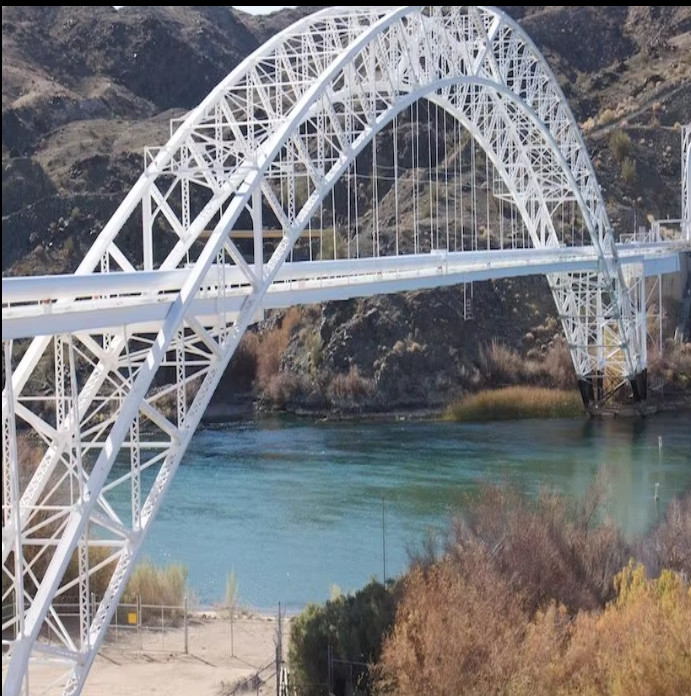

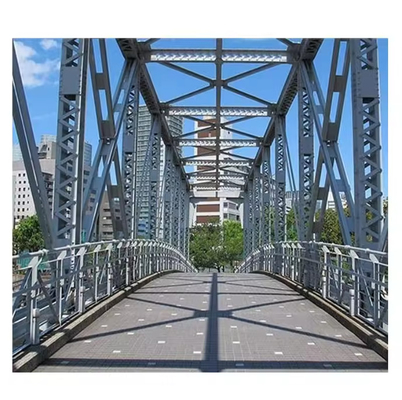

Hot Galvanizing Steel Structure Bolt Connecting Bridge Henvy Steel Bridge is a high-performance infrastructure solution designed for durability, longevity, and heavy load capacity. Built with reinforced steel girders, trusses, or suspension systems, it offers exceptional strength and resistance to environmental factors such as corrosion, seismic activity, and high traffic volumes.
Steel bridges are commonly used for highways, railways, and pedestrian pathways due to their efficient design and cost-effective construction process. The prefabrication of steel components allows for quick assembly, minimizing disruptions and ensuring long-term reliability with minimal upkeep.
ZB200 Truss Press Limited Table
| NO. | Internal Force | Structure Form |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of Geometric Characteristics of Truss Bridge (Half Bridge)
| Structure | Geometric Characteristics |
| SS | Chord Area(cm2): 25.48 | Section Properties(cm3): 5437 | Moment of Inertia(cm4): 580174 |
| SSR | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DS | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DSR1 | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| DSR2 | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| TS | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| TSR2 | Chord Area(cm2): 127.4 | Section Properties(cm3): 27185 | Moment of Inertia(cm4): 2900870 |
| TSR3 | Chord Area(cm2): 152.88 | Section Properties(cm3): 32625 | Moment of Inertia(cm4): 3481044 |
| QS | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| QSR3 | Chord Area(cm2): 178.36 | Section Properties(cm3): 38059 | Moment of Inertia(cm4): 4061218 |
| QSR4 | Chord Area(cm2): 203.84 | Section Properties(cm3): 43500 | Moment of Inertia(cm4): 4641392 |
Company Profile
Our company currently has the most advanced professional steel structure housing and sandwich panel production equipment, with annual production capacity of up to 100 million square meters for civil and industrial light steel construction. Our panel products include sandwich panel, China A grade fireproof glass wool board, rock wool board, corrugated sandwich panel, single color steel tile, and invisible watts, with production capacity of 130 million square meters.
Since its inception, we have adhered to the business philosophy of "Implementation of Hege's strategy to create first-class brand", the spirit of "pragmatic, pioneering and innovative", and the service purpose of "be responsible for the products, be satisfactory to user". We have established a complete scientific management system and unique business model, with distribution networks and service facilities in more than 10 provinces and cities across China.
In recent years, we have expanded into overseas markets with products successfully exported to South America, Europe, Middle Asia, Africa and other countries and regions, gradually becoming a worldwide famous brand.
Production Process
Case Studies
Our Customers
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific mode of transportation (by sea or air) and which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, please contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available. You can show us your design plan or ship us your original sample. We handle everything from concept to finished goods including design, prototype reviewing, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea)
- If you have a cooperative freight forwarder, please provide their contact information
- Please send us an official purchase order by email or we can provide proforma invoices for you
