200 Type Modular Steel Bridges - Temporary Steel Bailey Bridge Anti Seismic
Product Specifications
| Attribute | Value |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Design | Do as the customer's drawing |
Product Description

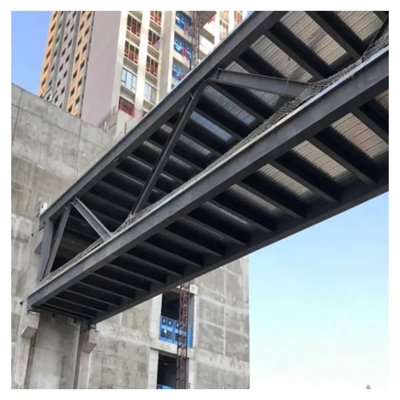

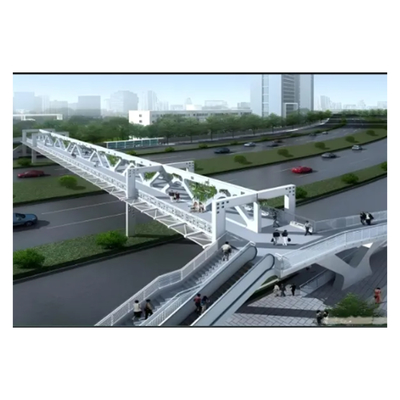

A steel bridge is a highly durable and load-bearing structure designed for highways, railways, and pedestrian crossings. Constructed using high-strength steel girders, trusses, or arch systems, it ensures superior structural integrity and resistance to heavy traffic, seismic activity, and extreme weather conditions.
Steel bridges are prefabricated for efficient assembly, reducing construction time and costs while maintaining environmental sustainability. Their design allows for long spans with minimal support, optimizing transportation flow and safety. With various surface treatments such as galvanization and anti-corrosion coatings, steel bridges offer a long service life with minimal maintenance requirements.
ZB200 Truss Press Limited Table
| NO. | Internal Force | Structure Form |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of Geometric Characteristics of Truss Bridge (Half Bridge)
| Structure | Geometric Characteristics |
| SS | Chord Area(cm2): 25.48 | Section Properties(cm3): 5437 | Moment of Inertia(cm4): 580174 |
| SSR | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DS | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DSR1 | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| DSR2 | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| TS | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| TSR2 | Chord Area(cm2): 127.4 | Section Properties(cm3): 27185 | Moment of Inertia(cm4): 2900870 |
| TSR3 | Chord Area(cm2): 152.88 | Section Properties(cm3): 32625 | Moment of Inertia(cm4): 3481044 |
| QS | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| QSR3 | Chord Area(cm2): 178.36 | Section Properties(cm3): 38059 | Moment of Inertia(cm4): 4061218 |
| QSR4 | Chord Area(cm2): 203.84 | Section Properties(cm3): 43500 | Moment of Inertia(cm4): 4641392 |
Company Profile
Our company currently has the most advanced professional steel structure housing and sandwich panel production equipment, with annual production capacity of civil and industrial light steel construction area yielding up to 100 million square meters, and panel production including sandwich panel, China A grade fireproof glass wool board, rock wool board, corrugated sandwich panel, single color steel tile, and invisible watts, totaling 130 million square meters.
Since its inception, we have always adhered to the business philosophy of "Implementation of Hege's strategy to create first-class brand", and maintain the staff spirit of "pragmatic, pioneering and innovative". Our service purpose is "be responsible for the products, be satisfactory to user" as the operation and management guiding ideology. We have gradually established a complete set of scientific management system and a unique business model, with distribution networks and services established in more than 10 provinces and cities across China.
In recent years, Hege company has expanded into overseas markets with products successfully exported to South America, Europe, Middle Asia, Africa and other countries and regions, gradually becoming a worldwide brand.
Production Process

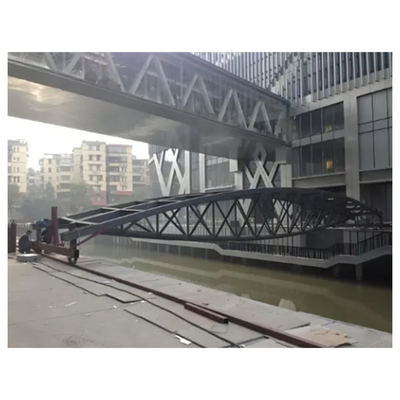

Case Studies
Our Customers
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide us specific mode of transportation (by sea or air) and which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, feel free to contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available. You can show us your design plan, and it's better to ship us your original sample. From concept to finished goods, we handle all processes (design, prototype reviewing, tooling and production) in our factory.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea)
- If you have a cooperative freight forwarder, please provide their contact information
- Please send us an official purchase order by email, or we can provide proforma invoices for you
