Custom Color Steel Structure Bridge Heavy Steel Bailey Bridge International Standard
Product Specifications
| Attribute | Value |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| Origin | Qingdao |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
Product Description

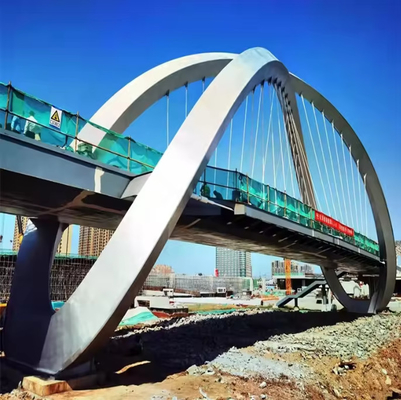

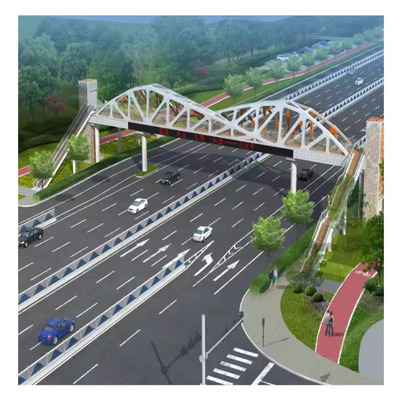

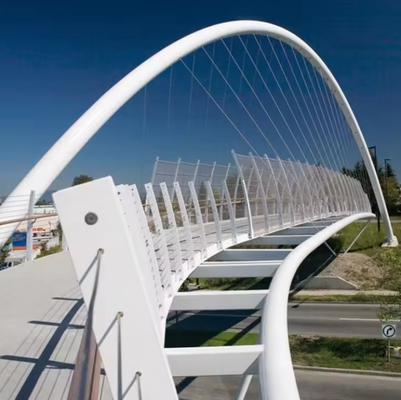

Our International Standard Top Grade Steel Structure Bridge is a highly durable and load-bearing structure designed for highways, railways, and pedestrian crossings. Constructed using high-strength steel girders, trusses, or arch systems, it ensures superior structural integrity and resistance to heavy traffic, seismic activity, and extreme weather conditions.
Steel bridges are prefabricated for efficient assembly, reducing construction time and costs while maintaining environmental sustainability. Their design allows for long spans with minimal support, optimizing transportation flow and safety. With various surface treatments such as galvanization and anti-corrosion coatings, steel bridges offer a long service life with minimal maintenance requirements.
ZB200 Truss Press Limited Table
| NO. | Internal Force | Structure Form |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of Geometric Characteristics of Truss Bridge (Half Bridge)
| Structure | Geometric Characteristics |
| SS | Chord Area(cm2): 25.48 | Section Properties(cm3): 5437 | Moment of Inertia(cm4): 580174 |
| SSR | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DS | Chord Area(cm2): 50.96 | Section Properties(cm3): 10875 | Moment of Inertia(cm4): 1160348 |
| DSR1 | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| DSR2 | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| TS | Chord Area(cm2): 76.44 | Section Properties(cm3): 16312 | Moment of Inertia(cm4): 1740522 |
| TSR2 | Chord Area(cm2): 127.4 | Section Properties(cm3): 27185 | Moment of Inertia(cm4): 2900870 |
| TSR3 | Chord Area(cm2): 152.88 | Section Properties(cm3): 32625 | Moment of Inertia(cm4): 3481044 |
| QS | Chord Area(cm2): 101.92 | Section Properties(cm3): 21750 | Moment of Inertia(cm4): 2320696 |
| QSR3 | Chord Area(cm2): 178.36 | Section Properties(cm3): 38059 | Moment of Inertia(cm4): 4061218 |
| QSR4 | Chord Area(cm2): 203.84 | Section Properties(cm3): 43500 | Moment of Inertia(cm4): 4641392 |
Company Profile
Our company currently has the most advanced professional steel structure housing and sandwich panel production equipment, with annual production capacity of up to 100 million square meters for civil and industrial light steel construction. Our panel products include sandwich panels, China A grade fireproof glass wool boards, rock wool boards, corrugated sandwich panels, single color steel tiles, and invisible watts, with production capacity of 130 million square meters.
Since its inception, we have adhered to the business philosophy of "Implementation of Hege's strategy to create first-class brand", and the spirit of "pragmatic, pioneering and innovative". We maintain the service purpose of "being responsible for the products and satisfactory to users", gradually establishing a complete scientific management system and unique business model.
With distribution networks and service facilities in more than 10 provinces and cities, we have expanded to international markets including South America, Europe, Middle Asia, and Africa, becoming a globally recognized brand.
Production Process
Case Studies
Our Customers
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details (by sea or air) and destination port/airport.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM services are available. You can provide design plans or original samples. We handle everything from concept to finished goods including design, prototype reviewing, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, detailed address, phone number, shipping method (courier, air or sea)
- Freight forwarder contact information if applicable
- Official purchase order or we can provide proforma invoices
