Autocad Lightweight Steel Frame Construction Heavy Structural Steel Fabrication

Large Image : Autocad Lightweight Steel Frame Construction Heavy Structural Steel Fabrication

Product Details:

Brand Name:	WANZHIDA
Model Number:	WANZHIDA

Payment & Shipping Terms:

Minimum Order Quantity:	10 tons
Price:	100 - 800 USD Per Ton
Delivery Time:	10 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

Autocad Lightweight Steel Frame Construction Heavy Structural Steel Fabrication

Description

Material:	Steel	Production:	50000tons/Year
Customization:	Customized Logo: Min. Order: 5000	MOQ:	10 Tons
Size/Dimensions:	Size/Dimensions	File Formats:	Solid Works,PRO/Engineer, Autocad(Dxf,Dwg), Pdf,Ti
Certification:	ISO
Highlight:	Autocad lightweight steel frame construction , Q355 lightweight steel frame construction , Q235 Heavy Structural Steel Fabrication

Autocad Lightweight Steel Frame Construction Heavy Structural Steel Fabrication

Product Specifications

Attribute	Value
Material	Steel
Production	50,000 tons/Year
Customization	Customized Logo: Min. Order: 5000
MOQ	10 Tons
Size/Dimensions	Customizable
File Formats	Solid Works, PRO/Engineer, Autocad (Dxf, Dwg), Pdf, Ti
Certification	ISO

Product Description

Prefabricated Heavy Steel Structure Frame for Steel Warehouse

As an innovative and sustainable building solution, steel structures have become the preferred choice for commercial buildings, bridges, stadiums, and various large-scale public facilities due to their high strength, light weight, and excellent seismic performance.

In today's era of speed and efficiency, steel structure buildings significantly reduce construction timelines, lower costs, and ensure project quality.

Environmental sustainability is another key advantage of steel structures. Steel is 100% recyclable, minimizing construction waste and aligning with green building principles. When combined with advanced insulation materials and energy-efficient design, steel buildings effectively reduce energy consumption while creating comfortable indoor environments.

Technical Specifications

Component	Specification
Main Steel Frame (Column)	Q235, Q355 Welded H Section Steel
Main Steel Frame (Beam)	Q235, Q355 Welded H Section Steel
Secondary Frame (Purlin)	Q235 C and Z Purlin
Knee Brace	Q235 Angle Steel
Tie Rod	Q235 Circular Steel Pipe
Brace	Q235 Round Bar
Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Window	Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout	PVC
Live Load on Roof	120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade	12 Grades
Earthquake-resistance	8 Grades
Structure Usage	Up to 50 years
Finishing Options	Wide range of colors and textures available
Paint Options	Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized

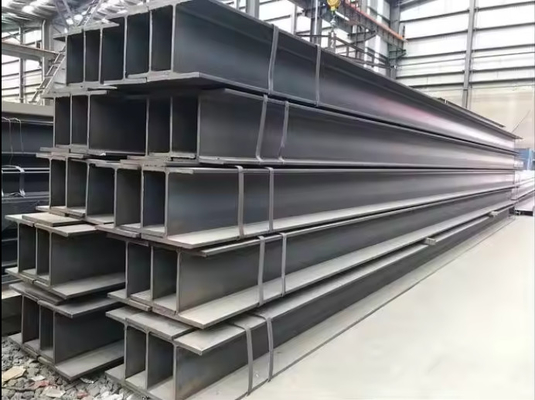

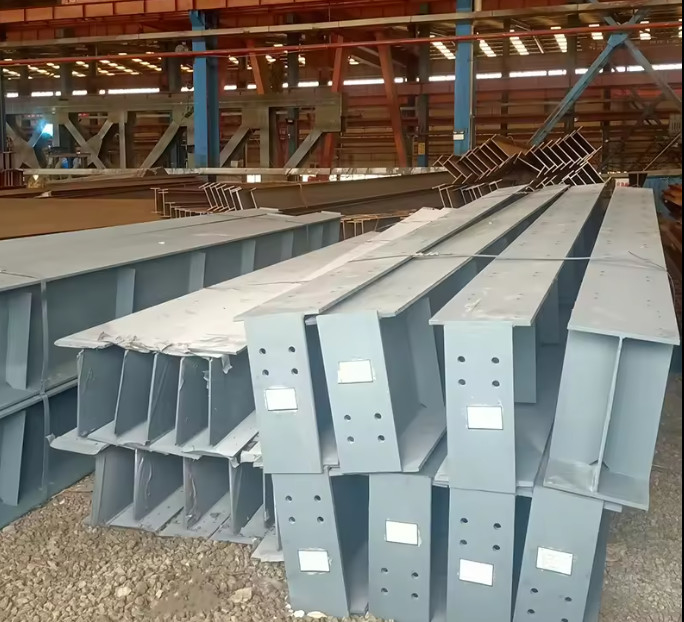

Product Images

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

We are a manufacturer with over 20 years of experience in metal products.

Q2: How much is the freight?

Freight costs depend on your shipping method and quantity. Please provide specific transportation details (sea or air) and destination port/airport.

Q3: Do you accept retail orders? What is the MOQ required?

Yes, we accept retail orders. Minimum order quantities are negotiable - contact us to discuss your requirements.

Q4: Do you provide ODM/OEM service?

Yes. We offer OEM/ODM services. You can provide design plans or original samples. We handle everything from concept to finished product including design, prototyping, tooling, and production.

Q5: Can you provide samples?

Yes. We can ship samples via DHL, UPS, Fedex, TNT, or EMS. Contact us for details.

Q6: How do I place an order?

Please provide:

Product specifications, quantity, and delivery requirements
Payment information
Shipping details (name, address, phone, shipping method)
Freight forwarder contact information if applicable
Official purchase order or we can provide proforma invoices

Project Requirements

Width: __________M
Length: ________M
Space distance between columns: ________M
Eave height: __________M
Brick wall or concrete wall height (if any): _________M
Roof slope grade: ___________(° or %)
Ventilation: 1) No 2) Normal 3) Natural 4) Ventilator
Wall and roof: 1) EPS sandwich panel 2) PU panel 3) Rock wool panel 4) Steel sheet thickness: __________________
Door: 1) Sandwich panel sliding door 2) Rolling door size: __________________
Window: 1) Aluminium window 2) PVC window size: _____________________
Lighting: 1) Skylight board 2) Thickness: __________
Draining: 1) Natural draining 2) Gutter
Crane: 1) Yes 2) No 3) Capacity _____T
