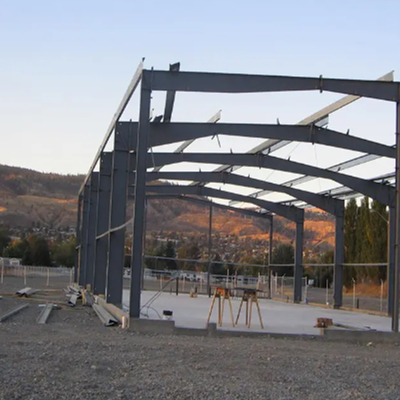

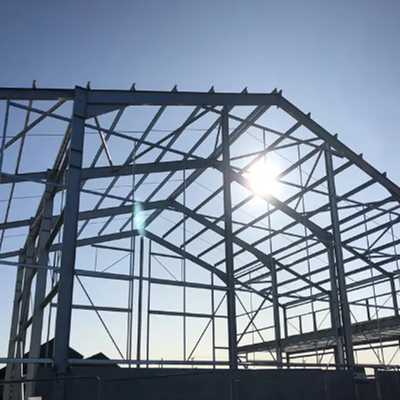

Welded Commercial Lightweight Steel Frame Construction H Shape For Workshop
Product Specifications
| Attribute | Value |
| Material | Steel Metal |
| Production | 50000tons/Year |
| Customization | Customized Logo: Min. Order: 5000 |
| MOQ | 10 Tons |
| Size/Dimensions | Customizable |
| File Formats | Solid Works, PRO/Engineer, Autocad (Dxf,Dwg), Pdf, Ti |
| Certification | ISO |
| Drawing Design | Professional Engineer |
| Application | Steel Structure Platform |
| Delivery time | On time |
| Price | Be negotiated |
Product Description
As an innovative and sustainable building form, steel structure has become the preferred material for commercial buildings, bridges, stadiums and various large-scale public facilities due to its high strength, light weight and excellent seismic performance.
In the era of speed and efficiency, steel structure buildings greatly shorten the construction cycle, reduce costs, and ensure the quality of the project.
Environmental protection and energy saving is another highlight of steel structure buildings. Steel can be 100% recycled, reducing construction waste, in line with the concept of green building. Combined with advanced thermal insulation materials and energy-saving design, steel buildings can also effectively reduce energy consumption and create a comfortable and pleasant indoor environment.
Technical Specifications
| Main Steel Frame | Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel |
| Secondary Frame | Purlin: Q235 C and Z purlin
Knee brace: Q235 Angle Steel
Tie Rod: Q235 Circular Steel Pipe
Brace: Q235 Round Bar
Vertical and Horizontal Support: Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system | Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet |
| Accessories | Window: Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout: PVC |
| Performance | Live load on Roof: 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade: 12 Grades
Earthquake-resistance: 8 Grades
Structure Usage: Up to 50 years |
| Finishing Options | Paint Options: Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Vast array of colors and textures available |
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
We will decide according to your mode of shipping and quantity, it needs you to provide us specific mode of transportation (by sea or air), which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, free to contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available, you can show us the design plan, and it is better to ship us your original sample. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q5: Can you provide samples?
A: Yes. We can ship your sample via DHL, UPS, Fedex, TNT, EMS etc. Please feel free to contact us for details.
Q6. How do I place an order?
A: Please try to provide the following information:
* Product information: specifications, quantity, delivery requirements
* Payment
* Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea).
* If there is a cooperative freight forwarder, please provide the contact information of the freight forwarder.
* Please send us an official purchase order by email. or we can provide proforma invoices for you.
Project Requirements
- Width__________M
- Length________M
- Space distance between columns:________M
- Eave high__________M
- Brick wall or concrete wall high(if any)_________M
- Roof slop grade___________(°or%)
- Ventilation: 1)no 2)normal 3)natural 4)ventilator
- Wall and roof: 1) EPS sandwich panel 2)PU panel 3)rock wool panel 4) steel sheet thickness:__________________
- Door: 1)sandwich panel sliding door 2)rolling door size:__________________
- Window: 1)aluminium window 2) PVC window size :_____________________
- Lighting: 1)skylight board 2)thickness:__________
- Draining: 1)natural draining 2)gutter
- Crane: 1)yes 2)no 3)capacity_____T
