Multi Storey Prefabricated Commercial Steel Building Construction Metal Structure
| Attribute |
Value |
| Material |
Steel |
| Specification |
Custom |
| Delivery Time |
15-45 Days |
| Grade |
A |
| File Formats |
Dwg and Pdf |
| Sample Time |
7 Days If Standard Parts We Have |
| Processing |
Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Feature |
Earthquake resistance |
Product Overview
Our commercial steel buildings are modern, high-performance structures designed for retail spaces, office buildings, shopping centers, and other business applications. Utilizing precision-engineered steel framing, they offer unmatched strength, flexibility, and aesthetic appeal.
Technical Specifications

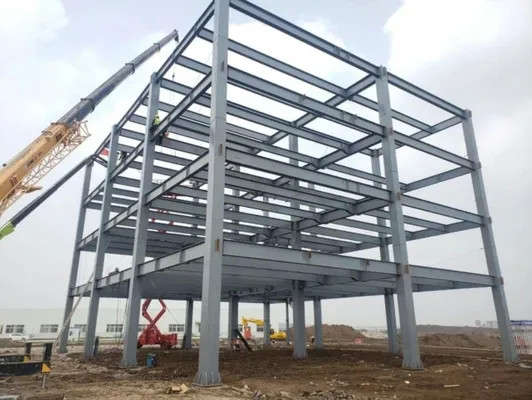

Main Steel Frame
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel
Secondary Frame
Purlin: Q235, Q355 C and Z purlin
Knee brace: Q235, Q355 Angle Steel
Tie Rod: Q235, Q355 Circular Steel Pipe
Brace: Q235, Q355 Round Bar
Vertical and Horizontal Support: Q235, Q355 Angle Steel, Round Bar or Steel Pipe
Maintenance System
Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet
Performance Specifications
Live load on Roof: 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade: 12 Grades
Earthquake-resistance: 8 Grades
Structure Usage: Up to 50 years
Company Profile
Our company specializes in steel structure housing and sandwich panel production with an annual production capacity of 100 million square meters. We maintain a complete scientific management system and have established distribution networks in over 10 provinces and cities, with products exported to South America, Europe, Middle Asia, and Africa.
Production Process

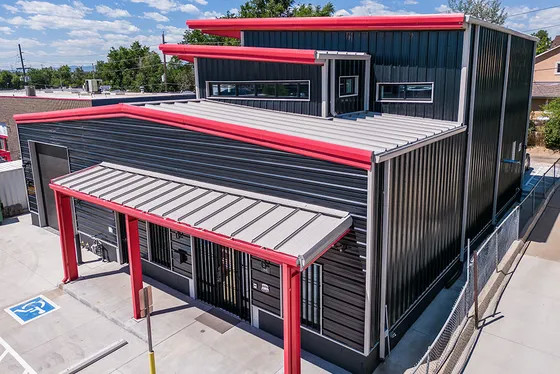

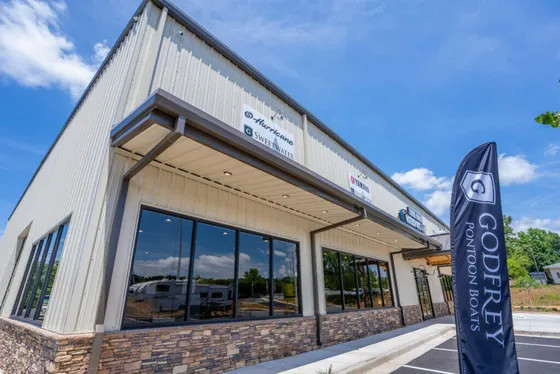

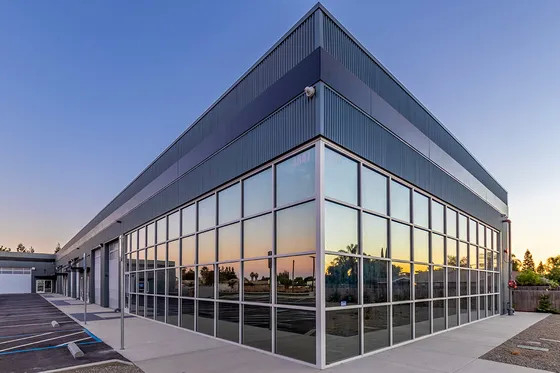

Project Cases
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available. We can work from your design plan or original sample through to finished goods.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc.
Q6: How do I place an order?
A: Please provide product specifications, quantity, delivery requirements, payment and shipping information.
