Anti Corrosion Prefabricated Steel Structure Q355b Welded Modular Steel Structure
Product Specifications
| Attribute | Value |
| Product Name | Large Span Prefabricated Steel Buildings Prefab Metal Warehouse Workshop Office Building |
| Material | Steel |
| Specification | Custom |
| Delivery Time | 15-45 Days |
| OEM/ODM | OEM, ODM |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Feature | Earthquake resistance |
Product Overview
With the development of national economy and the acceleration of urbanization process, steel structures are increasingly being used in construction. Steel structures offer high strength, light weight, excellent seismic performance, short construction periods, strong plasticity, and energy efficiency, making them ideal for industrial plants, municipal infrastructure, cultural/educational/sports facilities, power plants, bridges, offshore oil engineering, and aerospace applications.
Technical Specifications
Main Steel Frame
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel
Secondary Frame
Purlin: Q235, Q355 C and Z purlin
Knee brace: Q235, Q355 Angle Steel
Tie Rod: Q235, Q355 Circular Steel Pipe
Brace: Q235, Q355 Round Bar
Vertical and Horizontal Support: Q235, Q355 Angle Steel, Round Bar or Steel Pipe
Maintenance System
Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet
Accessories
Window: Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout: PVC
Performance
Live load on Roof: 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade: 12 Grades
Earthquake-resistance: 8 Grades
Structure Usage: Up to 50 years
Finishing Options
Vast array of colors and textures available
Paint Options: Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Product Gallery
Company Profile
Production Process

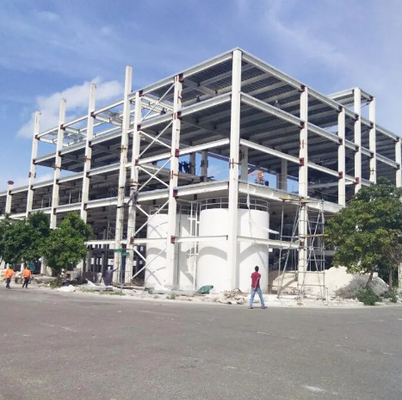

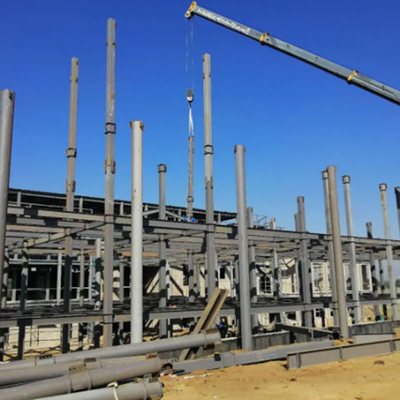

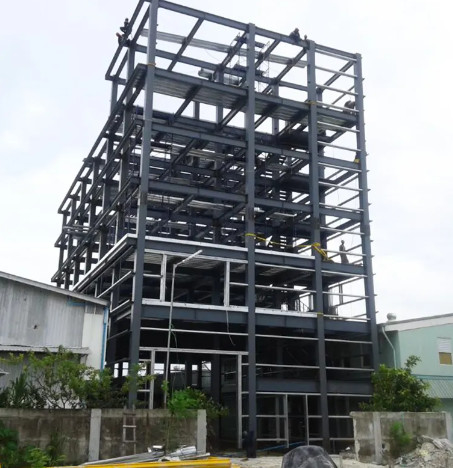

Project Cases
Our Customers
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity, it needs you to provide us specific mode of transportation (by sea or air), which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, free to contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available, you can show us the design plan, and it is better to ship us your original sample. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q5: Can you provide samples?
A: Yes. We can ship your sample via DHL, UPS, Fedex, TNT, EMS etc. Please feel free to contact us for details.
Q6: How do I place an order?
A: Please try to provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment
- Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea)
- If there is a cooperative freight forwarder, please provide the contact information of the freight forwarder
- Please send us an official purchase order by email or we can provide proforma invoices for you
