Robust Construction Q355B Steel Building Structure Multi Story Pre Engineered Building
Product Specifications
| Attribute | Value |
| Material | Steel |
| Delivery Time | 15-45 Days |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Processing | Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Feature | Earthquake resistance |
Custom Q355B Pre-Engineered Modular Prefab Industrial Warehouse Steel Structure Building
Our steel structure buildings are large-scale, prefabricated construction solutions made of high-strength steel components, designed for durability, efficiency, and versatility. Constructed using precision-engineered steel columns, beams, and panels, they offer exceptional load-bearing capacity and resistance to harsh environmental conditions. The lightweight yet robust design allows for rapid installation and reduced construction time. Ideal for industrial facilities, commercial complexes, and multi-story residential projects, our structures can be customized in size, layout, and exterior finishes to meet specific project requirements.
Technical Specifications
| Component | Specification |
| Main Steel Frame (Column) | Q235, Q355 Welded H Section Steel |
| Main Steel Frame (Beam) | Q235, Q355 Welded H Section Steel |
| Secondary Frame (Purlin) | Q235, Q355 C and Z purlin |
| Knee Brace | Q235, Q355 Angle Steel |
| Tie Rod | Q235, Q355 Circular Steel Pipe |
| Brace | Q235, Q355 Round Bar |
| Vertical and Horizontal Support | Q235, Q355 Angle Steel, Round Bar or Steel Pipe |
| Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet |
| Live Load on Roof | 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |

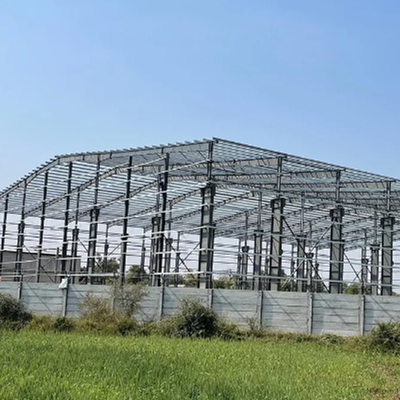

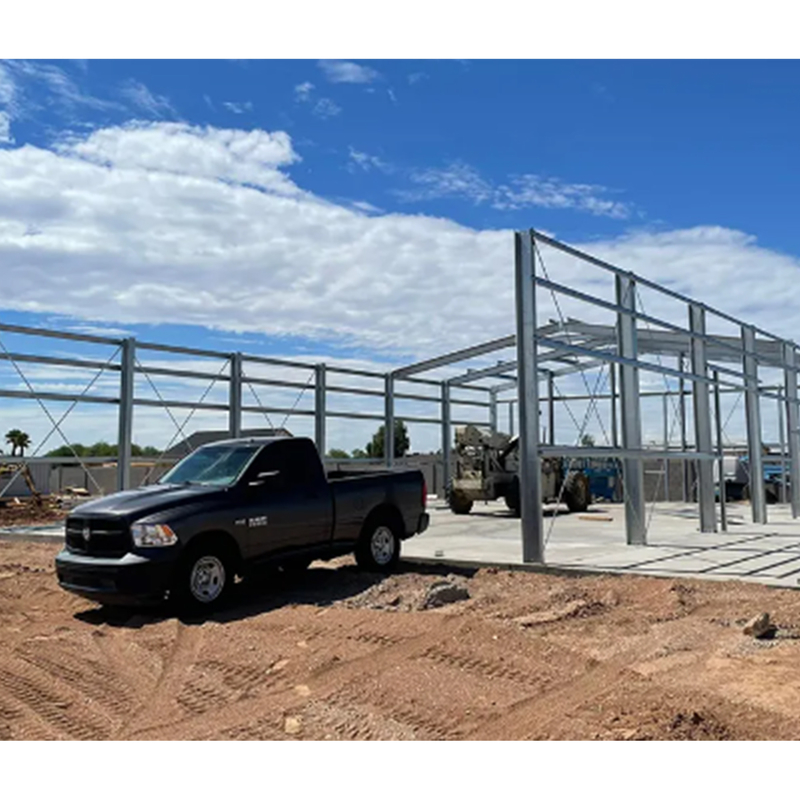

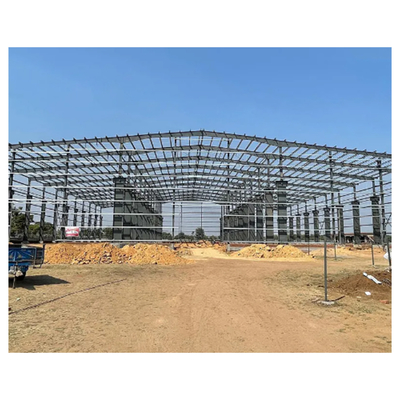

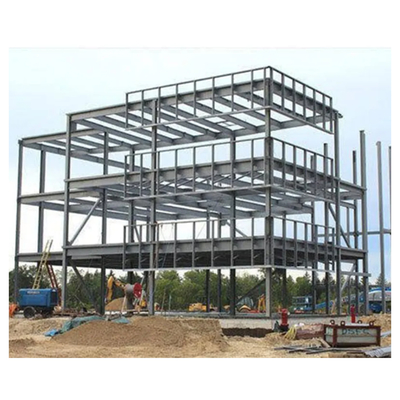

Product Images
Company Profile
Shandong Wanzhida New Materials Technology Co., Ltd. is located in Shandong province, with an area of 25,000 m² and total assets of more than 120 million. We specialize in R&D, design, production, sales and service of steel construction materials and prefab houses. Our main products include Light Gauge Steel Villa, modular house, container house, movable sentry box, and steel structures. We are ISO 9001 certified and hold additional certifications including "Primary Green Environmental Protection Product", "China Famous Brand", and "China Recommended Construction Product".
Production Process
Project Case Studies
Customer References
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details (by sea or air) and destination port/airport.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us to discuss your requirements.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM services are available. We can work from your design plan or original sample, handling everything from concept to finished product including design, prototyping, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, or EMS. Contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, address, phone number, shipping method
- Freight forwarder contact information if applicable
- Official purchase order or we can provide proforma invoices
