Q235 Q355 Steel Building Structure Mild Steel Commercial Metal Buildings
Product Specifications
| Attribute |
Value |
| Material |
Steel |
| Delivery Time |
15-45 Days |
| File Formats |
Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time |
7 Days If Standard Parts We Have |
| Processing |
Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
| Transportation |
Shipping |

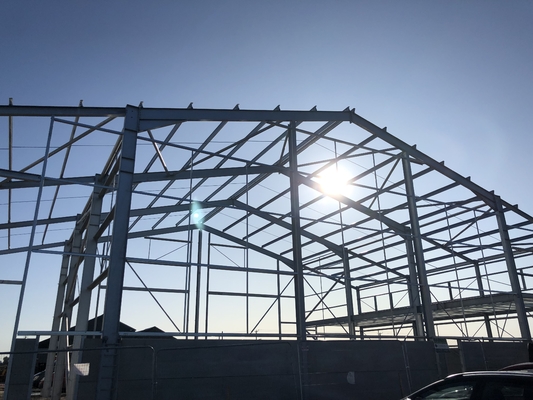

Prefabricated Q235 Q355 Mild Steel Structure
A steel structure building is a modern construction solution that combines strength, efficiency, and adaptability. Using high-quality steel beams, columns, and panels, it provides a sturdy framework capable of withstanding heavy loads and extreme weather conditions. This type of building is ideal for industrial, commercial, and residential applications, offering spacious interiors and flexible design options. With prefabricated components, steel buildings can be assembled quickly, significantly reducing construction time and labor costs while maintaining excellent structural integrity and sustainability.
Technical Specifications
| Main Steel Frame |
|
| Column |
Q235, Q355 Welded H Section Steel |
| Beam |
Q235, Q355 Welded H Section Steel |
| Secondary Frame |
|
| Purlin |
Q235, Q355 C and Z purlin |
| Knee brace |
Q235, Q355 Angle Steel |
| Tie Rod |
Q235, Q355 Circular Steel Pipe |
| Brace |
Q235, Q355 Round Bar |
| Vertical and Horizontal Support |
Q235, Q355 Angle Steel, Round Bar or Steel Pipe |
| Maintenance System |
|
| Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
|
| Window |
Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout |
PVC |
| Live load on Roof |
120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized |
Company Profile
Shandong Wanzhida New Materials Technology Co., Ltd. is located in Shandong province, with an area of 25000 m² and total asset of more than 120 million. We have been specializing in R&D, design, production, sales and service of steel construction material and all kinds of prefab house. Our main products include Light Gauge Steel Villa, modular house, container house, movable sentry box, steel structure etc. We passed ISO 9001 quality certification. Besides, our company also has other certifications, such as: "primary green environmental protection product", "China famous brand", "China recommended construction product", "Satisfactory enterprise" etc.
Productive Process
Case Studies
Customer References
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity, it needs you to provide us specific mode of transportation (by sea or air), which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, free to contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available, you can show us the design plan, and it is better to ship us your original sample. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q5: Can you provide samples?
A: Yes. We can ship your sample via DHL, UPS, Fedex, TNT, EMS etc. Please feel free to contact us for details.
Q6: How do I place an order?
A: Please try to provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment
- Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea)
- If there is a cooperative freight forwarder, please provide the contact information of the freight forwarder
- Please send us an official purchase order by email, or we can provide proforma invoices for you
