Aviation Industry Metal Airplane Hangar Sophisticated Structural Steel Hanger 5m - 6m
Product Specifications
| Attribute | Value |
| Material | Steel |
| Delivery Time | 15-45 Days |
| File Formats | Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time | 7 Days If Standard Parts We Have |
| Size | Customed |
| Feature | Earthquake Resistance |
Sophisticated Steel Structure Hangar 5m - 6m Height Metal Airplane Hangar

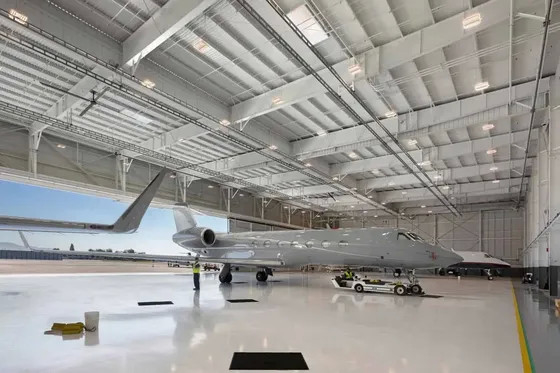

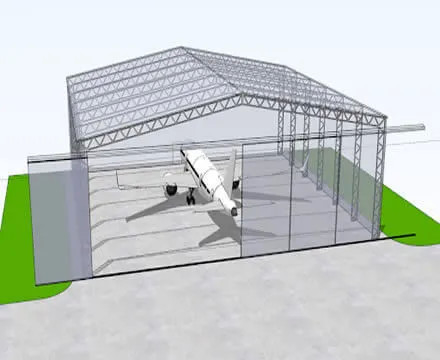

A steel structure hangar is a specialized facility built to house and protect aircraft and aviation equipment. Constructed with precision-engineered steel components, it provides a large-span design with no interior obstructions, ensuring easy maneuverability for aircraft of all sizes. The structure is highly resistant to wind, snow, and seismic forces, making it a reliable choice for airports, military bases, and private aviation centers. With customizable features such as automated doors, ventilation systems, and fire-resistant coatings, steel hangars offer long-lasting performance and low maintenance costs.
Technical Specifications
| Items | Specification |
| Main Steel Frame | Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel |
| Secondary Frame | Purlin: Q235, Q355 C and Z purlin
Knee brace: Q235, Q355 Angle Steel
Tie Rod: Q235, Q355 Circular Steel Pipe
Brace: Q235, Q355 Round Bar
Vertical and Horizontal Support: Q235, Q355 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system | Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet |
| Accessories | Window: Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout: PVC |
| Live load on Roof | 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade | 12 Grades |
| Earthquake-resistance | 8 Grades |
| Structure Usage | Up to 50 years |
| Finishing Options | Vast array of colors and textures available |
| Paint Options | Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
Company Profile
Shandong Wanzhida New Materials Technology Co., Ltd. is located in Shandong province, with an area 25000 m² and total asset of more than 120 million. We have been specializing in R&D, design, production, sales and service of steel construction material and all kinds of prefab house. Our main products include Light Gauge Steel Villa, modular house, container house, movable sentry box, steel structure etc. We passed ISO 9001 quality certification. Besides, our company also has other certifications, such as: "primary green environmental protection product", "China famous brand", "China recommended construction product", "Satisfactory enterprise" etc.
Productive Process
Case Studies
Customer References
Certifications
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
We will decide according to your mode of shipping and quantity, it needs you to provide us specific mode of transportation (by sea or air), which port or airport to arrive at.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail order. MOQ is negotiable, free to contact us for discussion.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM is available, you can show us the design plan, and it is better to ship us your original sample. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q5: Can you provide samples?
A: Yes. We can ship your sample via DHL, UPS, Fedex, TNT, EMS etc. Please feel free to contact us for details.
Q6: How do I place an order?
A: Please try to provide the following information:
* Product information: specifications, quantity, delivery requirements
* Payment
* Shipping information: name, detailed shipping address, phone number, shipping requirements (courier, air or sea).
* If there is a cooperative freight forwarder, please provide the contact information of the freight forwarder.
* Please send us an official purchase order by email. or we can provide proforma invoices for you.
Contact Us
Customization Requirements:
1. Width__________M
2. Length________M
3. Space distance between columns:________M
4. Eave high__________M
5. Brick wall or concrete wall high(if any)_________M
6. Roof slop grade___________(°or%)
7. Ventilation: 1)no 2)normal 3)natural 4)ventilator
8. Wall and roof: 1) EPS sandwich panel 2)PU panel 3)rock wool panel 4) steel sheet thickness:__________________
9. Door: 1)sandwich panel sliding door 2)rolling door size:__________________
10. Window: 1)aluminium window 2) PVC window size :_____________________
11. Lighting: 1)skylight board 2)thickness:__________
12. Draining: 1)natural draining 2)gutter
13. Crane: 1)yes 2)no 3)capacity_____T
