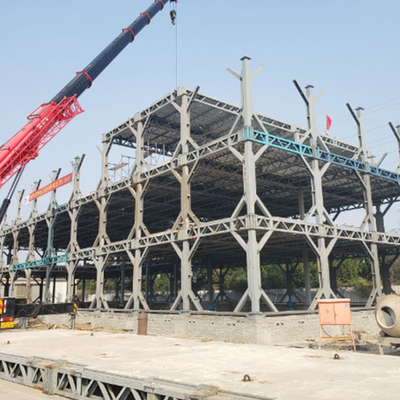

H Section Beams Modular Prefabricated Multi Storey Steel Building
Key Features
- CE Standard compliant steel structure building
- High strength-to-weight ratio for superior performance
- Excellent seismic resistance with good plasticity and toughness
- Custom specifications available with OEM/ODM services
- 50-year structural lifespan with proper maintenance
Product Specifications
| Attribute |
Value |
| Material |
Steel |
| Specification |
Custom |
| Delivery Time |
15-45 Days |
| OEM/ODM |
OEM, ODM |
| File Formats |
Solid Works, Autocad (Dxf, Dwg), Pdf |
| Sample Time |
7 Days (For standard parts we have) |
| Processing |
Cutting, welding, assembly, galvanizing, painting, flaw detection, transporting |
Structural Components
Main Steel Frame
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel
Secondary Frame
Purlin: Q235, Q355 C and Z purlin
Knee brace: Q235, Q355 Angle Steel
Tie Rod: Q235, Q355 Circular Steel Pipe
Brace: Q235, Q355 Round Bar
Vertical and Horizontal Support: Q235, Q355 Angle Steel, Round Bar or Steel Pipe
Performance Specifications
- Live load on Roof: 120kg/Sqm (Color steel panel surrounded)
- Wind Resistance Grade: 12 Grades
- Earthquake-resistance: 8 Grades
- Structure Usage: Up to 50 years
Finishing Options
- Vast array of colors and textures available
- Paint Options: Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized
Maintenance System
Roof Panel
EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel
Sandwich Panel / Corrugated Steel Sheet
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A: We are a manufacturer engaging in the field of metal products for more than 20 years.
Q2: How much is the freight?
A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details (by sea or air) and destination port/airport.
Q3: Do you accept retail order? What is the MOQ required?
A: Yes, we accept retail orders. MOQ is negotiable - please contact us to discuss your requirements.
Q4: Do you provide ODM/OEM service?
A: Yes. OEM&ODM services are available. We can work from your design plan or original sample. Our comprehensive services include design, prototype reviewing, tooling and production.
Q5: Can you provide samples?
A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.
Q6: How do I place an order?
A: Please provide the following information:
- Product information: specifications, quantity, delivery requirements
- Payment details
- Shipping information: name, detailed address, phone number, shipping method
- Freight forwarder contact information if applicable
- Official purchase order or we can provide proforma invoices
