Anti Corrosion Metal Large Workshop Buildings - Modern High Durability Space Frame Steel Structure
Product Specifications
| Attribute |
Value |
| Material |
Steel |
| Specification |
Custom |
| Delivery Time |
15-45 Days |
| File Formats |
Solid Works, Autocad(Dxf, Dwg), Pdf |
| Sample Time |
7 Days If Standard Parts We Have |
| Processing |
Cutting/Punching |
| Life span |
80 years |
Customized Metal Steel Structure Workshop Buildings With High Strength And Durability

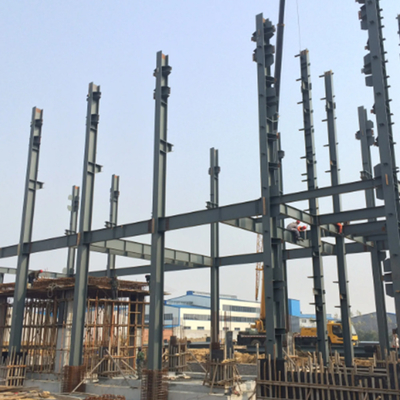

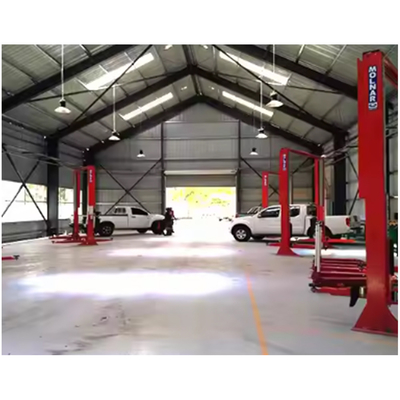

A steel structure workshop is a durable and spacious industrial facility designed for manufacturing, assembly, or storage purposes. Made from high-quality steel frames and reinforced with advanced welding and bolting techniques, these workshops provide excellent stability, seismic resistance, and fire protection. The open-span design allows for maximum utilization of space, facilitating large-scale machinery and workflow efficiency.
Technical Specifications
| Items |
Specification |
| Main Steel Frame |
| Column |
Q235, Q355 Welded H Section Steel |
| Beam |
Q235, Q355 Welded H Section Steel |
| Secondary Frame |
| Purlin |
Q235, Q355 C and Z purlin |
| Knee brace |
Q235, Q355 Angle Steel |
| Tie Rod |
Q235, Q355 Circular Steel Pipe |
| Brace |
Q235, Q355 Round Bar |
| Vertical and Horizontal Support |
Q235, Q355 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
| Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel /Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
| Window |
Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout |
PVC |
| Live load on Roof |
120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized |
