Custom Size Plant Steel Structure Warehouse Metal Warehouse Building

Large Image : Custom Size Plant Steel Structure Warehouse Metal Warehouse Building

Product Details:

Brand Name:	WANZHIDA
Model Number:	WANZHIDA

Payment & Shipping Terms:

Minimum Order Quantity:	10 tons
Price:	100 - 800 USD Per Ton
Delivery Time:	10 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Now Chat Now

Custom Size Plant Steel Structure Warehouse Metal Warehouse Building

Description

Production:	50000tons/Year	Customization:	Customized Logo: Min. Order: 5000
MOQ:	20 Tons	Size/Dimensions:	Size/Dimensions
File Formats:	Solid Works,PRO/Engineer, Autocad(Dxf,Dwg), Pdf,Ti	Certification:	ISO
Production Name:	Customized Construction Metal Steel Prefabricated Workshop Steel Structure Warehouse
Highlight:	custom size Steel Structure Warehouse , Steel Structure Warehouse Corrosion resistant , custom size Plant Steel Structure

Custom Size Plant Steel Structure Warehouse Metal Warehouse Building

Product Specifications

Attribute	Value
Production	50000tons/Year
Customization	Customized Logo: Min. Order: 5000
MOQ	20 Tons
File Formats	Solid Works, PRO/Engineer, Autocad(Dxf,Dwg), Pdf, Ti
Certification	ISO

Product Description

Customized Construction Metal Steel Prefabricated Workshop Steel Structure Warehouse

Steel structure warehouse represents the wisdom of modern engineering. As an innovative and sustainable building form, steel structures have become the preferred material for commercial buildings, bridges, stadiums and various large-scale public facilities due to their high strength, light weight and excellent seismic performance.

In the era of speed and efficiency, steel structure buildings significantly shorten construction cycles, reduce costs, and ensure project quality. Their environmental benefits include 100% recyclability, reduced construction waste, and compatibility with green building concepts. When combined with advanced insulation materials and energy-efficient design, these buildings effectively reduce energy consumption while creating comfortable indoor environments.

Technical Specifications

Main Steel Frame - Column	Q235, Q355 Welded H Section Steel
Main Steel Frame - Beam	Q235, Q355 Welded H Section Steel
Secondary Frame - Purlin	Q235 C and Z purlin
Knee Brace	Q235 Angle Steel
Tie Rod	Q235 Circular Steel Pipe
Brace	Q235 Round Bar
Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Window Options	Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Options	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Live Load on Roof	120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade	12 Grades
Earthquake Resistance	8 Grades
Structure Usage	Up to 50 years
Finishing Options	Vast array of colors and textures available
Paint Options	Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized

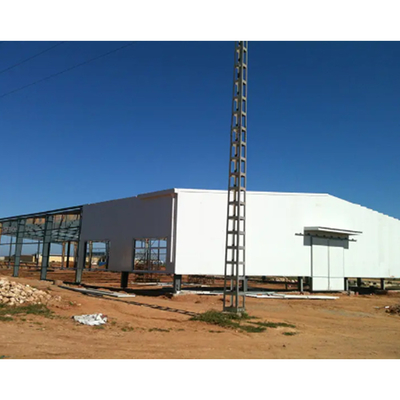

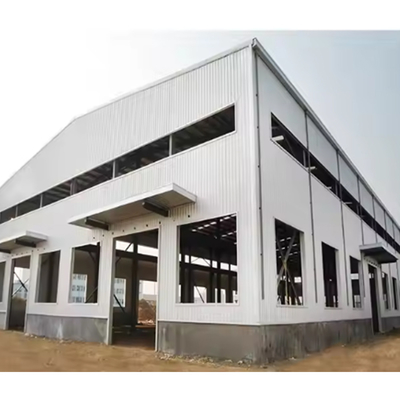

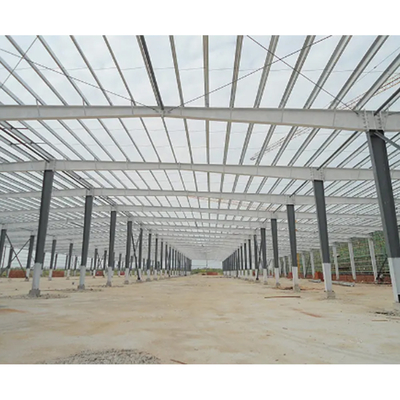

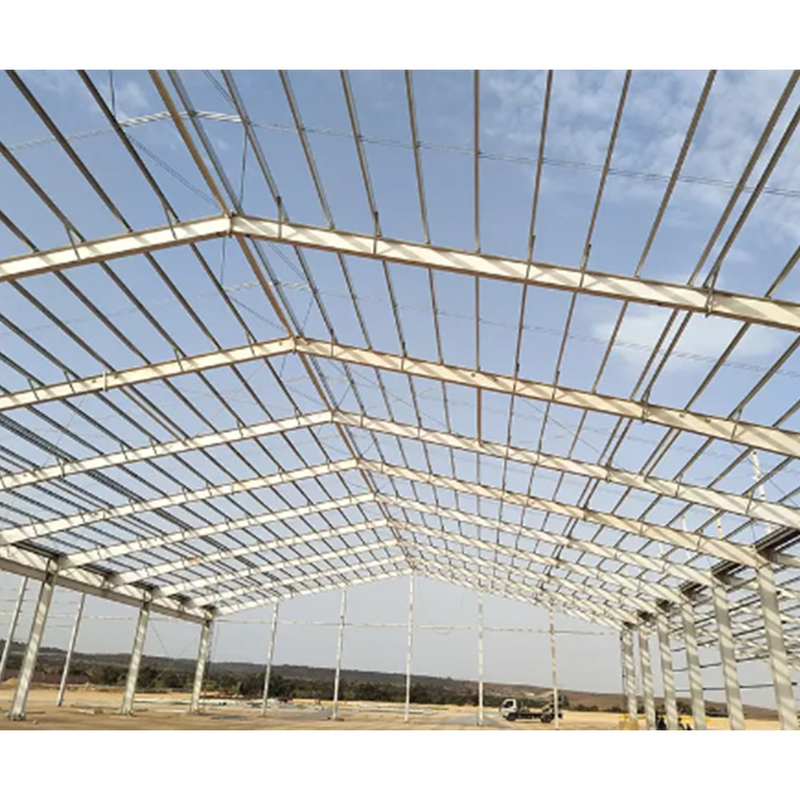

Product Gallery

Frequently Asked Questions

Q1: Are you trading company or manufacturer?

A: We are a manufacturer engaging in the field of metal products for more than 20 years.

Q2: How much is the freight?

A: We will decide according to your mode of shipping and quantity. Please provide specific transportation details (by sea or air) and destination port/airport.

Q3: Do you accept retail order? What is the MOQ required?

A: Yes, we accept retail orders. MOQ is negotiable - please contact us for discussion.

Q4: Do you provide ODM/OEM service?

A: Yes. OEM&ODM services are available. You can provide design plans or original samples. We handle everything from concept to finished goods including design, prototype reviewing, tooling and production.

Q5: Can you provide samples?

A: Yes. We can ship samples via DHL, UPS, Fedex, TNT, EMS etc. Please contact us for details.

Q6: How do I place an order?

A: Please provide: Product specifications and quantity, Payment details, Shipping information (address, phone, requirements), Freight forwarder contact if applicable, and send us an official purchase order or request our proforma invoice.

Order Requirements

Width __________ M
Length __________ M
Space distance between columns: __________ M
Eave height __________ M
Brick wall or concrete wall height (if any) __________ M
Roof slope grade __________ (° or %)
Ventilation: 1) no 2) normal 3) natural 4) ventilator
Wall and roof: 1) EPS sandwich panel 2) PU panel 3) rock wool panel 4) steel sheet thickness: __________
Door: 1) sandwich panel sliding door 2) rolling door size: __________
Window: 1) aluminium window 2) PVC window size: __________
Lighting: 1) skylight board 2) thickness: __________
Draining: 1) natural draining 2) gutter
Crane: 1) yes 2) no 3) capacity _____ T
